Project Overview

Introduction

This system is a core component of the InternUtopia project. It enables real-time teleoperation of a Franka robotic arm through monocular RGB camera-based hand gesture recognition, while simultaneously collecting trajectory data during operation.

Core Objective: A low-cost solution for collecting robotic arm trajectory data in complex or long-horizon tasks

Tutorial Documentation: this guide provides detailed setup instructions and gesture definitions.

Key Highlights:

Low-cost solution: Requires only a single RGB camera without additional specialized hardware
Intuitive control: Supports special gestures for:
- Third-person view adjustment
- Coordinate system recalibration
- Motion precision tuning
Optimized performance: Improves human-robot motion semantic consistency with higher precision and real-time responsiveness

Right-hand-based robotic arm control demonstration

Left-hand-based viewpoint control demonstration

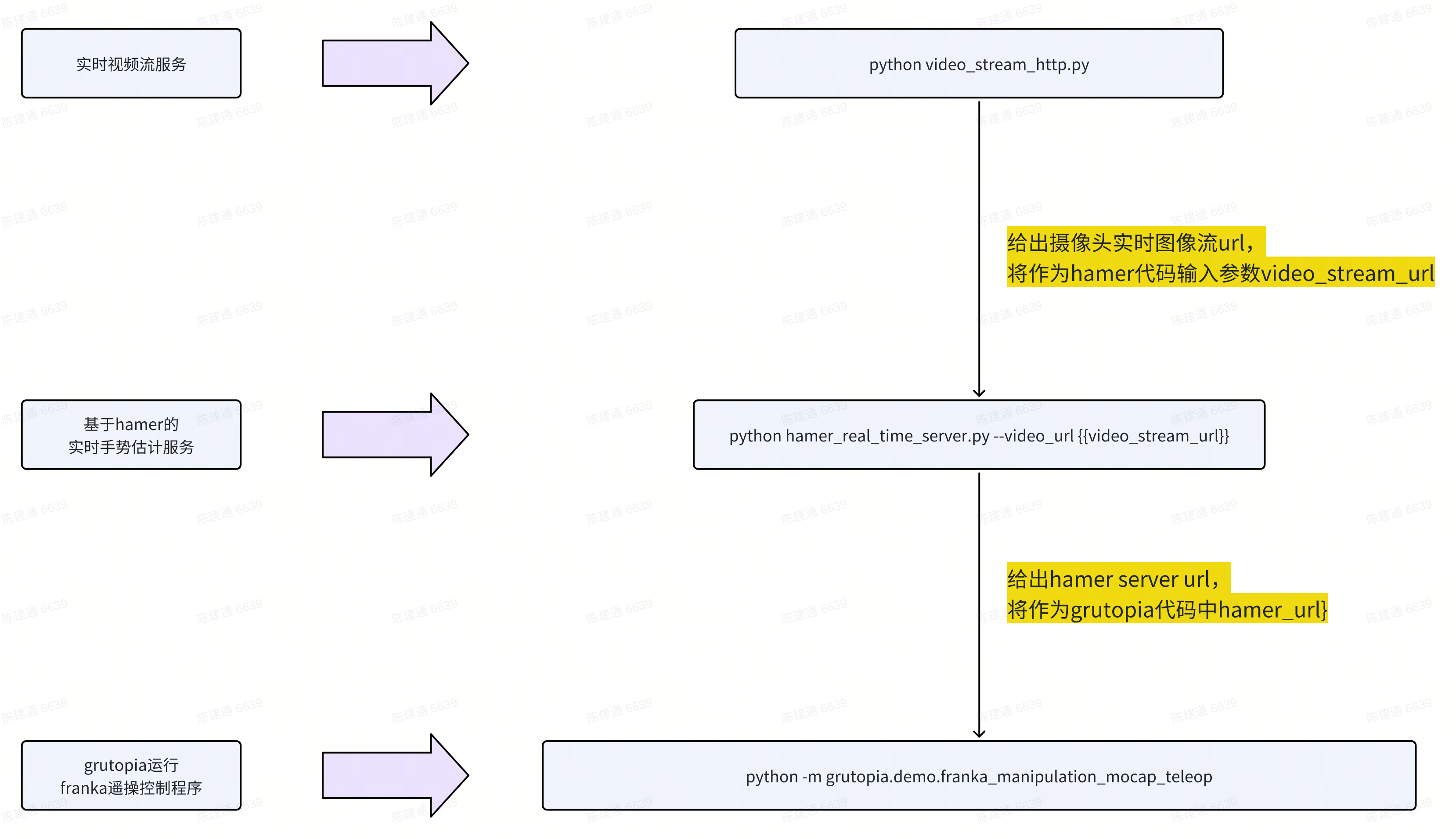

System Architecture

Hardware Requirements

Recommended configuration:

2× NVIDIA RTX 4060 Ti GPUs (1 for Hamer, 1 for GRUtopia)
1× RGB camera

Notes:

Single-GPU operation is supported, but with reduced frame rate
No strict requirement on camera type; USB webcams or built-in laptop cameras are both acceptable

Implementation Workflow (as in tutorial)

Launch real-time video streaming server
Initialize hand gesture recognition service
Start Franka robotic arm control program

Launching real-time video streaming server

Initializing gesture recognition service and starting robotic arm control program

Gesture Description (as in tutorial)

Right hand: direct end-effector control
- Thumb–index pinch/release: close/open gripper
Left hand: auxiliary control functions
- Thumb–index pinch with motion: adjust third-person view
- (See the full gesture definition in the tutorial)

Pick-and-place task demonstration
