Project Overview

We organized the IROS 2025 Challenge, which includes two tracks: Manipulation and Navigation. The challenge was also featured in the IROS 2025 Workshop. I personally participated in maintaining the Manipulation track, namely Vision-Language Manipulation in Open Tabletop Environments. The online competition submission deadline is September 30, and everyone is welcome to participate!

Supplement: Congratulations to the successful conclusion of the IROS 2025 Hangzhou on-site final! I had the opportunity to participate in real-world robot debugging on-site and also served as one of the chief judges. After comprehensive evaluation, we are pleased to congratulate Team HonorEmbodiment for winning the Manipulation track championship.

---

Contributions As the evaluation lead for the manipulation track, I primarily participated in and completed the following work:

• Built the GenManip benchmark evaluation environment
• Developed the system framework from scratch based on InternUtopia
• Implemented the evaluation pipeline and protocol in InternManip
• Conducted real-robot debugging during the offline finals and served as one of the chief judges and technical advisors

---

Environment Composition

Tasks

• A total of 10 manipulation tasks, divided into two categories:

  • Seen (objects appearing in the training set)
  • Unseen (previously unseen novel objects)

• Each task and category contains 10 data samples, including USD files and metadata

Dataset link: huggingface dataset

validation
├── IROS_C_V3_Aloha_seen
│   ├── collect_three_glues/
│   │   ├── 000
│   │   │   ├── meta_info.pkl
│   │   │   ├── scene.usd
│   │   │   └── SubUSDs -> ../SubUSDs
│   │   ├── 001/
│   │   ├── ...
│   │   └── 009/
│   ├── collect_two_alarm_clocks/
│   ├── collect_two_shoes/
│   ├── gather_three_teaboxes/
│   ├── make_sandwich/
│   ├── oil_painting_recognition/
│   ├── organize_colorful_cups/
│   ├── purchase_gift_box/
│   ├── put_drink_on_basket/
│   └── sort_waste/
└── IROS_C_V3_Aloha_unseen
    └── ...

---

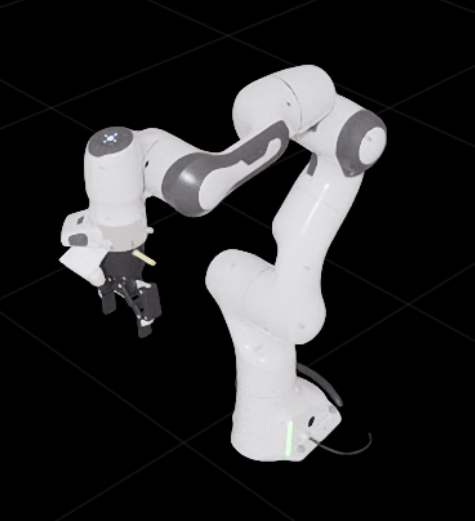

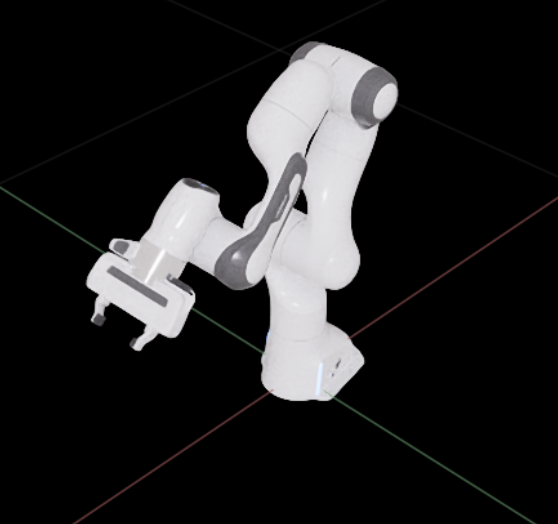

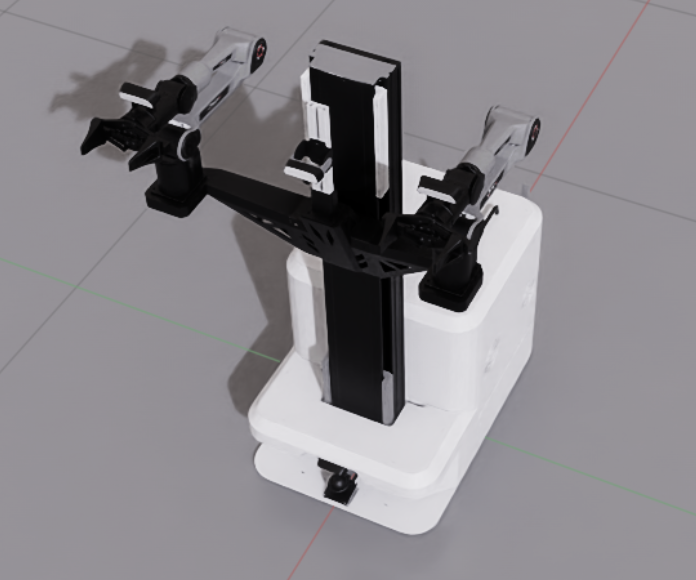

Robots

---

Controllers

• Joint position control
• Inverse kinematics solver

Observation & Action Space

The following is an example using the Franka robot. For detailed specifications, please refer to the I/O specification documentation.

Observation Space (Franka)

observations: List[Dict] = [
    {
        "robot": {
            "robot_pose": (position, orientation),
            "joints_state": {
                "positions": array,
                "velocities": array
            },
            "eef_pose": (position, orientation),
            "sensors": {
                "realsense": {
                    "rgb": (480, 640, 3),
                    "depth": (480, 640)
                },
                "obs_camera": {...},
                "obs_camera_2": {...}
            },
            "instruction": str,
            "metric": {
                "task_name": str,
                "episode_name": str,
                "episode_sr": int,
                "first_success_step": int,
                "episode_step": int
            },
            "step": int,
            "render": bool
        }
    }
]

Action Space (Franka)

Three formats are supported:

List[float]

{
    'arm_action': List[float],
    'gripper_action': Union[List[float], int]
}

{
    'eef_position': List[float],
    'eef_orientation': List[float],
    'gripper_action': Union[List[float], int]
}

---

Sensors

• Franka: front-facing view / gripper first-person view / rear-side view
• Aloha: head view / left gripper first-person view / right gripper first-person view

---

Metrics

The primary metric is success rate:

• Soft success: partial task completion counts as partial success (used in the competition)
• Hard success: only full completion of all subtasks is considered success

---

Additional Components

• Developed a custom recorder for asynchronously capturing image frames and logging both state and image data at each timestep, improving runtime efficiency.
• Implemented support for batch evaluation across multiple environments or parallel instances of Isaac Sim.
• A full list of configurable parameters and additional features can be found in the official documentation.

---

InternManip Integration

The above evaluation environment is integrated as a benchmark module in InternManip.

Main implementations include:

• wrapper environment
• evaluator
• Ray-based parallel evaluation
• agent / model integration interface

The evaluation functionality in InternManip has been refactored into InternManip-Eval, which is introduced in a separate project page.
